AMD K5

AMD K5
	An AMD K5 PR166 microprocessor
General information
Launched	March 27, 1996 (SSA/5); October 7, 1996 (5k86)
Common manufacturer	AMD ;
Performance
Max. CPU clock rate	75 MHz to 133 MHz
FSB speeds	50 MHz to 66 MHz
Cache
L1 cache	8 KB + 16 KB; (data + instructions)
Architecture and classification
Application	Desktop, Embedded
Microarchitecture	K5
Instruction set	IA-32/x86
Physical specifications
Transistors	4.3M 500 nm ;
Cores	1;
Sockets	Socket 5 ; Socket 7 ;
Products, models, variants
Model	SSA/5 Series; 5k86 Series;
History
Predecessor	Am5x86
Successor	K6

Last updated December 01, 2024

The K5 is AMD 's first x86 processor to be developed entirely in-house. Introduced in March 1996, its primary competition was Intel's Pentium microprocessor. The K5 was an ambitious design, closer to a Pentium Pro than a Pentium regarding technical solutions and internal architecture. However, the final product was closer to the Pentium regarding performance, although faster clock-for-clock compared to the Pentium.

Technical details

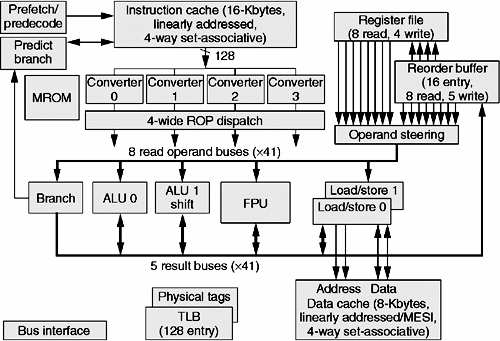

K5 core diagram AMDK5Diagram.png — K5 core diagram

The K5 was based upon an internal highly parallel RISC processor architecture with an x86 decoding front-end.^[1] The K5 offered good x86 compatibility and the in-house-developed test suite proved invaluable on later projects. All models had 4.3 million transistors, with five integer units that could process instructions out of order and one floating-point unit. The branch target buffer was four times the size of the Pentium's and register renaming helped overcome register dependencies.^[2] The chip's speculative execution of instructions reduced pipeline stalls. It had a 16 KB four-way set-associative instruction cache and an 8 KB data cache. The floating-point divide and square-root microcode were mechanically proven.^[3]^[4] The floating-point transcendental instructions were implemented in hardware and were faithful to true mathematical results for all operands.^[5]

Performance

The K5 project represented an early chance for AMD to take technical leadership from Intel. Although the chip addressed the right design concepts, the actual engineering implementation had its issues. The low clock rates were, in part, due to AMD's limitations as a "cutting edge" manufacturing company at the time, and in part due to the design itself, which had many levels of logic for the process technology of the day, hampering clock scaling. Additionally, while the K5's floating-point performance was regarded as superior to that of the Cyrix 6x86,^{[ clarification needed ]} it was slower than that of the Pentium, although offering more reliable transcendental function results. Because it was late to market and did not meet performance expectations, the K5 never gained the acceptance among large computer manufacturers that the earlier Am486 and later AMD K6 enjoyed.

Features

Models

There were two revisions of the K5 architecture, internally called the SSA/5 and the 5k86, both released with the K5 label. The original set of "SSA/5" CPUs had its branch prediction unit disabled and additional internal waitstates added; these issues were remedied with the "5k86", resulting in up to 30% better performance clock for clock.^[6]^[7] The "SSA/5" line ran from 75 to 100 MHz; the "5k86" line ran from 90 to 133 MHz. However, AMD used what it called a PR rating, or performance rating, to label the chips according to their suggested equivalence in integer performance to a Pentium of that clock speed. Thus, a 116 MHz chip from the second line was marketed as the "K5 PR166". Manufacturing delays caused the PR200's arrival to nearly align with the release of K6. Since AMD did not want the two chips competing, the K5-PR200 only arrived in small numbers.

SSA/5

Sold as 5K86 P75 to P100, later as K5 PR75 to PR100
4.3 million transistors in 500 or 350 nm
L1-Cache: 8 + 16 KB (data + instructions)
Socket 5 and Socket 7
VCore: 3.52 V
Front side bus: 50 (PR75), 60 (PR90), 66 MHz (PR100)
First release: March 27, 1996
Clockrate: 75, 90, 100 MHz

5k86

Sold as K5 PR120 to PR166; later PR200
4.3 million transistors in 350 nm
L1-Cache: 8 + 16 KB (data + instructions)
Socket 5 and Socket 7
VCore: 3.52 V
Front side bus: 60 (PR120/150), 66 MHz
First release: October 7, 1996
Clockrate: 90 (PR120), 100 (PR133), 105 (PR150), 116.6 (PR166), 133 MHz (PR200)

Related Research Articles

Athlon is the brand name applied to a series of x86-compatible microprocessors designed and manufactured by AMD. The original Athlon was the first seventh-generation x86 processor and the first desktop processor to reach speeds of one gigahertz (GHz). It made its debut as AMD's high-end processor brand on June 23, 1999. Over the years AMD has used the Athlon name with the 64-bit Athlon 64 architecture, the Athlon II, and Accelerated Processing Unit (APU) chips targeting the Socket AM1 desktop SoC architecture, and Socket AM4 Zen (microarchitecture). The modern Zen-based Athlon with a Radeon Graphics processor was introduced in 2019 as AMD's highest-performance entry-level processor.

The Cyrix 6x86 is a line of sixth-generation, 32-bit x86 microprocessors designed and released by Cyrix in 1995. Cyrix, being a fabless company, had the chips manufactured by IBM and SGS-Thomson. The 6x86 was made as a direct competitor to Intel's Pentium microprocessor line, and was pin compatible.

The Intel 486, officially named i486 and also known as 80486, is a microprocessor introduced in 1989. It is a higher-performance follow-up to the Intel 386. It represents the fourth generation of binary compatible CPUs following the 8086 of 1978, the Intel 80286 of 1982, and 1985's i386.

<span class="mw-page-title-main">AMD K6</span> Computer microprocessor

The K6 microprocessor was launched by AMD in 1997. The main advantage of this particular microprocessor is that it was designed to fit into existing desktop designs for Pentium-branded CPUs. It was marketed as a product that could perform as well as its Intel Pentium II equivalent but at a significantly lower price. The K6 had a considerable impact on the PC market and presented Intel with serious competition.

The Pentium is a microprocessor introduced by Intel on March 22, 1993. It is the first CPU using the Pentium brand. Considered the fifth generation in the x86 (8086) compatible line of processors, succeeding the i486, its implementation and microarchitecture was internally called P5.

Duron is a line of budget x86-compatible microprocessors manufactured by AMD and released on June 19, 2000. Duron was intended to be a lower-cost offering to complement AMD's then mainstream performance Athlon processor line, and it also competed with rival chipmaker Intel's Pentium III and Celeron processor offerings. The Duron brand name was retired in 2004, succeeded by AMD's Sempron line of processors as their budget offering.

Cyrix Corporation was a microprocessor developer that was founded in 1988 in Richardson, Texas, as a specialist supplier of floating point units for 286 and 386 microprocessors. The company was founded by Tom Brightman and Jerry Rogers.

The Pentium II is a brand of sixth-generation Intel x86 microprocessors based on the P6 microarchitecture, introduced on May 7, 1997. It combined the P6 microarchitecture seen on the Pentium Pro with the MMX instruction set of the Pentium MMX.

The Pentium III brand refers to Intel's 32-bit x86 desktop and mobile CPUs based on the sixth-generation P6 microarchitecture introduced on February 28, 1999. The brand's initial processors were very similar to the earlier Pentium II-branded processors. The most notable differences were the addition of the Streaming SIMD Extensions (SSE) instruction set, and the introduction of a controversial serial number embedded in the chip during manufacturing.

The Pentium Pro is a sixth-generation x86 microprocessor developed and manufactured by Intel and introduced on November 1, 1995. It introduced the P6 microarchitecture and was originally intended to replace the original Pentium in a full range of applications. Later, it was reduced to a more narrow role as a server and high-end desktop processor. The Pentium Pro was also used in supercomputers, most notably ASCI Red, which used two Pentium Pro CPUs on each computing node and was the first computer to reach over one teraFLOPS in 1996, holding the number one spot in the TOP500 list from 1997 to 2000.

The Cyrix 5x86 is a line of x86 microprocessors designed by Cyrix and released on June 5 of 1995. Cyrix, being a fabless company, had the chips manufactured by IBM. The line came out about 5 months before the more famous Cyrix 6x86. The Cyrix 5x86 was one of the fastest CPUs ever produced for Socket 3 computer systems. With better performance in most applications than an Intel Pentium processor at 75 MHz, the Cyrix Cx5x86 filled a gap by providing a medium-performance processor option for 486 Socket 3 motherboards.

The Am5x86 processor is an x86-compatible CPU announced in November of 1995 by AMD for use in 486-class computer systems. It began shipping in December of 1995, with a base price of $93 per unit in bulk quantities. Before being released, it was in development under the codename "X5".

The Athlon 64 is a ninth-generation, AMD64-architecture microprocessor produced by Advanced Micro Devices (AMD), released on September 23, 2003. It is the third processor to bear the name Athlon, and the immediate successor to the Athlon XP. The Athlon 64 was the second processor to implement the AMD64 architecture and the first 64-bit processor targeted at the average consumer. Variants of the Athlon 64 have been produced for Socket 754, Socket 939, Socket 940, and Socket AM2. It was AMD's primary consumer CPU, and primarily competed with Intel's Pentium 4, especially the Prescott and Cedar Mill core revisions.

The K6-2 is an x86 microprocessor introduced by AMD on May 28, 1998, and available in speeds ranging from 266 to 550 MHz. An enhancement of the original K6, the K6-2 introduced AMD's 3DNow! SIMD instruction set and an upgraded system-bus interface called Super Socket 7, which was backward compatible with older Socket 7 motherboards. It was manufactured using a 250 nanometer process, ran at 2.2 volts, and had 9.3 million transistors.

<span class="mw-page-title-main">AMD K6-III</span> Microprocessor series by AMD

The K6-III was an x86 microprocessor line manufactured by AMD that launched on February 22, 1999. The launch consisted of both 400 and 450 MHz models and was based on the preceding K6-2 architecture. Its improved 256 KB on-chip L2 cache gave it significant improvements in system performance over its predecessor the K6-2. The K6-III was the last processor officially released for desktop Socket 7 systems, however later mobile K6-III+ and K6-2+ processors could be run unofficially in certain socket 7 motherboards if an updated BIOS was made available for a given board. The Pentium III processor from Intel launched 6 days later.

NexGen, Inc. was a private semiconductor company based in Milpitas, California, that designed x86 microprocessors until it was purchased by AMD in 1996. NexGen was a fabless design house that designed its chips but relied on other companies for production. NexGen's chips were produced by IBM's Microelectronics division in Burlington, Vermont alongside PowerPC and DRAM parts.

The WinChip series is a discontinued low-power Socket 7-based x86 processor that was designed by Centaur Technology and marketed by its parent company IDT.

Sempron has been the marketing name used by AMD for several different budget desktop CPUs, using several different technologies and CPU socket formats. The Sempron replaced the AMD Duron processor and competed against Intel's Celeron series of processors. AMD coined the name from the Latin semper, which means "always", to suggest the Sempron is suitable for "daily use, practical, and part of everyday life". The last Semprons were launched in April 2014. The brand was retired with the launch of the AMD A-Series APUs.

The AMD Am29000, commonly shortened to 29k, is a family of 32-bit RISC microprocessors and microcontrollers developed and fabricated by Advanced Micro Devices (AMD). Based on the seminal Berkeley RISC, the 29k added a number of significant improvements. They were, for a time, the most popular RISC chips on the market, widely used in laser printers from a variety of manufacturers.

The Athlon 64 X2 is the first native dual-core desktop central processing unit (CPU) designed by Advanced Micro Devices (AMD). It was designed from scratch as native dual-core by using an already multi-CPU enabled Athlon 64, joining it with another functional core on one die, and connecting both via a shared dual-channel memory controller/north bridge and additional control logic. The initial versions are based on the E stepping model of the Athlon 64 and, depending on the model, have either 512 or 1024 KB of L2 cache per core. The Athlon 64 X2 can decode instructions for Streaming SIMD Extensions 3 (SSE3), except those few specific to Intel's architecture. The first Athlon 64 X2 CPUs were released in May 2005, in the same month as Intel's first dual-core processor, the Pentium D.
